▼Lugged Type

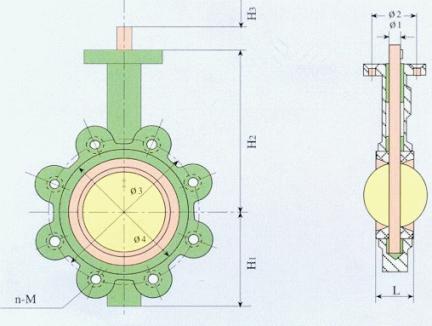

　▼Dimension of Lugged Type (1.0MPa/1.6MPa)

SIZE		H2	H1	L	D	H3	H	Ф3	N-m	K	Ф2	n1-Ф	Ф1	G	weight
Inch	mm														kg
2"	50	161	80	42	52.9	32	88.38	125	4-M16	77	57.15	4-6.7	12.6	118	3.8
2.5"	65	175	89	44.7	64.5	32	102.54	145	4-M16	77	57.15	4-6.7	12.6	137	4.2
3"	80	181	95	45.2	78.8	32	61.23	160	8-M16	77	57.15	4-6.7	12.6	178	4.7
4"	100	200	114	52.1	104	32	68.88	180	8-M16	92	69.85	4-10.3	15.77	206	9.0
5"	125	213	127	54.4	123.3	32	80.36	210	8-m16	92	69.85	4-10.3	18.92	238	10.9
6"	150	226	139	55.8	155.6	32	91.84	240	8-M20	92	69.85	4-10.3	18.92	266	14.2
8"	200	260	175	60.6	202.5	45	112.89	295	8-M20	115	88.9	4-14.3	22.10	329	18.2
10"	250	292	203	65.6	250.5	45	90.59	350	12-M20	115	88.9	4-14.3	28.45	393	26.8
12"	300	337	242	76.9	301.6	45	103.52	400	12-M20	140	107.95	4-14.3	31.60	462	40
14"	350	268	267	76.5	333.3	45	89.74	460	16-M20	140	107.95	4-14.3	31.60	515	56
16"	400	400	309	86.5	389.6	51.2	100.48	515	16-M20	197	158.75	4-20.6	33.15	579	96
18"	450	422	328	105.6	440.51	51.2	88.38	565	20-M24	197	158.75	4-20.6	38	627	122
20"	500	480	361	131.8	491.6	64.2	96.99	620	20-M24	197	158.75	4-20.6	41.15	696	202
24"	600	562	459	152	592.5	70.2	113.42	725	20-M27	276	215.9	4-22.2	50.65	821	270
