www.valvedepot.com Fig# No. 0521BS4504 Fax : 1-630-578-0598(USA) , 1-403-215-7868(Canada) Back to butterfly main page</TBODY>

▼Wafer Type 　　　

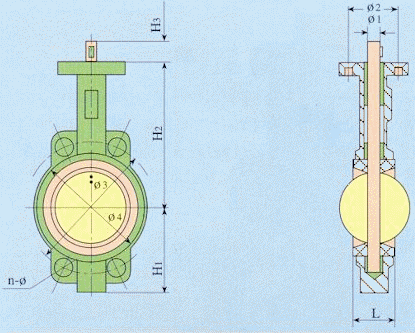

▼Dimension of Wafer Type (1.0MPa/1.6MPa)

SIZE		H2	H1	L	D	H3	H	Ф3	N-Ф	K	Ф2	n1-Ф1	Ф1	G	weight
inch	mm
															kg
2"	50	161	80	42	52.9	32	84.84	120	4-23	77	57.15	4-6.7	12.6	118	2.5
2.5"	65	175	89	44.7	64.5	32	96.2	136.2	4-26.5	77	57.15	4-6.7	12.6	137	3.2
3"	80	181	95	45.2	78.8	32	61.23	160	8-18	77	69.85	4-6.7	12.6	137	3.6
4"	100	200	114	52.1	104	32	70.80	185	4-24.5	92	69.85	4-10.03	15.77	156	4.9
5"	125	213	127	54.4	123.3	32	82.28	215	4-23	92	69.85	4-10.3	18.92	212	7.8
6"	150	226	139	55.8	155.6	32	91.08	238	4-25	92	69.85	4-10.3	18.92	212	7.8
8"	200	260	175	60.6	202.5	45	112.9	295	4-25	115	88.9	4-14.3	22.10	268	13.2
10"	250	292	203	65.6	250.5	45	92.40	357	4-29	115	88.9	4-14.3	28.45	325	19.2
12"	300	337	242	76.9	301.6	45	105.3	407	4-29	140	107.95	4-14.3	31.60	403	32.5
14"	350	368	267	76.5	333.3	45	91.11	467	4-30	140	107.95	4-14.3	31.60	436	41.3
16"	400	400	309	86.5	389.6	51.2	100.47	515	4-26	197	158.75	4-20.6	33.15	488	61
18"	450	422	328	105.6	440.51	51.2	88.39	565	4-26	197	158.75	4-20.6	38	539	79
20"	500	480	361	131.8	491.6	64.2	96.99	620	4-26	197	158.75	4-20.6	41.15	593	128
24"	600	562	459	152	592.5	70.2	113.4	725	20-30	276	215.9	4-20.6	50.65	816	188
28"	700	624	520	163	695	66	109.65	840	24-30	300	254	8-18	55	895	284
32"	800	672	591	188	794.7	66	109.65	840	24-30	300	254	8-18	55	1015	368
36"	900	720	656	203	864.7	118	117.57	1050	24-33	300	254	8-18	75	1115	713
40"	1000	800	721	216	965	142	129.89	1160	24-36	300	254	8-18	85	1230	864
