Fig.# 0421BS5153

BS5153    PN16  Size: 50 - 300mm    SWING CHECK VALVE
　
　
Features:
Integrated Disc and Hinge, no fiction at the connecting point between the disc and hinge which make a long service life of the valve.
Industry Standard:   BS5153
Type of connection:  Flange conform to BS 4504 PN 16
Working Pressure: 16 bar(non-shock) at10 oC -120 oC
Test  Pressure: Body - 24 bar; Seat - 16 bar

CAST IRON CHECK

Material of Construction
Parts Name

Materials

Body, Bonnet

 Cast Iron  BS1452 Gr 220

Disc

 Cast Iron  BS1452 Gr 220

Seat Ring

 Gunmetal   BS1400 LG 2
Hinge Pin(standard) Brass   BS2874 CZ 122
Hinge Pin(Alternative) High Tensile Bronze  BS2874 CZ 122
Hinge Plug

Steel
Bolting

Steel
Gasket

Non-asbestoes Joint Sheet

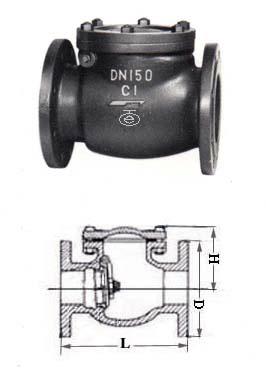

DIMENSIONS (mm)
Size 50 65 80 100 125 150 200 250 300
L 203 216 241 292 330 356 495 622 698
H 100 120 135 165 175 195 225 305 365
OEMIC   reserves  the rights to modify or renew all the contents above without prior notification to any parties.
