Fig.# 0201CS1500

CLASS 1500      Size: 1/2" - 10"    O.S.&Y     Wedge Gate
Industry Standard:
API 600, API 602, API 598,  ANSI B16.34,
MSS SP-44, BS1414
ANSI B16.5, ANSI B16.10

Type of connection:
RF,  RTJ,  BW, SW, Screwed

Type of operation : Handwheel, Gear, electric actuator , pneumatic actuator to ISO5210 Standard.

ISO 9001 & API Certified Manufacturer

       Back to other GATE VALVE

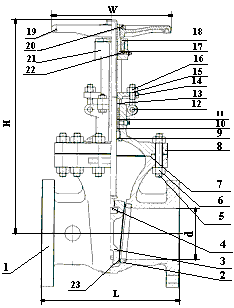

Material of Construction
No. Parts Name

Carbon Steel

Alloy Steel

Stainless Steel
WCB LCB WC6 WC9 C5 CF8 CF8M CF3 CF3M
1, 3, 8

Body,Wedge, Bonnet

 A216WCB A352LCB A217WC6 A217WC9 A217C5 A351CF8 A351CF8M A351CF3 A351CF3M
2 Seat Ring A105 A350LF2 A182F304 A182F304 A182F304 A182F304 A182F316 A182F304L A182F316L
4 Stem A182F6 A182F304 A182F304 A182F304 A182F304 A182F304 A182F316 A182F304L A182F316L
5 Bonnet Bolt

A193 B7   A320 L7   A193 B16  A320 B8   A193 B8M
6, 16 Bonnet Nut, Gland Nut

         A194 2H     A194  4   A194 7     A194 8
7 Gasket

Solid metal serrated gasket   S.S.and graphite spiral wound      Non-metallic gasket

9,11,13 Backseat Bushing, Lantern*, Gland A182F6 A182F6 A182F304 A182F304 A182F304 A182F304 A182F316 A182F304L A182F316L
10 Stem Packing

Graphite
14, 21 Gland Flange, York A216WCB A352LCB A217WC6 A217WC9 A217C5 A351CF8 A351CF8M A351CF3 A351CF3M
15 Gland Eyebolt

A307 B      A307 L7   A193 B7   A193 B8
17 Stem Nut

A439D2   ZCuAl10Fe3 (GB standard)
12,18, 20 Pin & Nuts

Carbon Steel or Alloy Steel

19 Hand Wheel

Ductile Iron or Carbon Steel

22 Nipple

Copper Alloy           Carbon Steel or S. S

23 Sealing Face Overlay

13Cr   and 18Cr-8Ni or HG (Co-CrA)
DIMENSIONS AND WEIGHTS   (mm & inches)
Size
in		 15
1/2		 25
1		 40
1  1/2		 50
2		 65
2  1/2		 80
3		 100
4		 125
5		 150
6		 200
8		 250
10
L 216
8.5		 229
9		 254
10		 305
12		 368
14.5		 419
16.5		 470
18.5		 546
21.5		 705
27.8		 832
32.8		 991
39
H 216
8.5		 229
9		 254
10		 305
12		 371
14.6		 422
16.6		 430
18.6		 549
21.6		 711
28		 841
33.1		 1000
39.4
W 100
3.9		 100
3.9		 200
8		 250
10		 400
16		 400
16		 400
16		 500
20		 600
24		 750
30		 850
34
Wt(Kg) 27
23		 29
25		 30
26		 34
30		 95
80		 128
110		 181
145		 275
220		 627
560		 1000
850		 2200
1950
OEMIC   reserves  the rights to modify or renew all the contents above without prior notification to any parties.
