Liquefied Petroleum Gas Container
(Made in China)

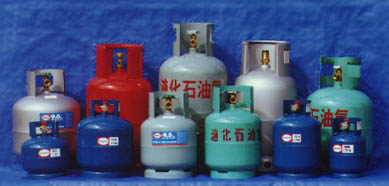

Liquefied petroleum gas container includes
two types of YSP and LPG. There are 10 specifications classed from 1.25KG to 15KG in them.
Our products are made by premium steel and tested stringently by pressurized water, by air test, and by x-ray test,
etc. All items tested are compliance with the standard of design, manufacture and test of
BRITISH STANDARD:BS5045, AUSTRALIAN
STANDARD:AS2469 AND AS2470, FRENCH STANDARD:NF M88-703, AMERICAN STANDARD:DOT 4BA
270 AND CHINESE STANDARD:GB5842-1996 «LIQUEFIED PETROLEUM GAS CONTAINER». Our products are with nice style, easy to use,
safety and reliable. Our perfect afterservice is your satisfaction and trusting guarantee.
Liquefied
petroleum gas container specification and technical data
Specification |
nominal volume (L) |
nominal diameter(mm) |
nominal length(mm) |
net weight(KG) |
inflation approved(KG) |
LPG-1.25 |
3 |
ø160 |
260 |
2.8 |
1.25 |
LPG-2 |
4.8 |
ø215 |
245 |
3.7 |
2 |
LPG-3.3 |
8 |
ø215 |
335 |
4.7 |
3.3 |
LPG-4.5 |
10.7 |
ø250 |
385 |
6.5 |
4.5 |
LPG-9 |
21.6 |
ø315 |
460 |
9.7 |
9 |
LPG-11 |
26.2 |
ø294 |
590 |
16.6 |
11 |
LPG-13 |
26.5 |
ø300 |
578 |
12.8 |
13(butane) |
YSP-5 |
12 |
ø250 |
420 |
7 |
5 |
YSP-10 |
23.5 |
ø314 |
535 |
12 |
10 |
YSP-15 |
35.5 |
ø314 |
680 |
16.5 |
15 |
¡¡ |
