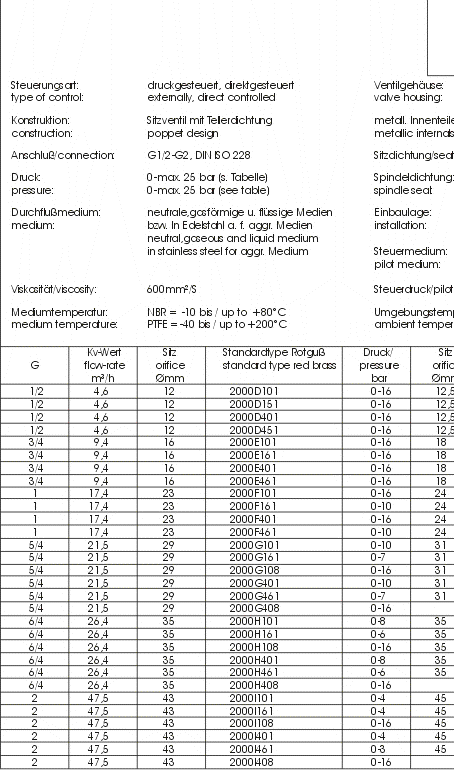

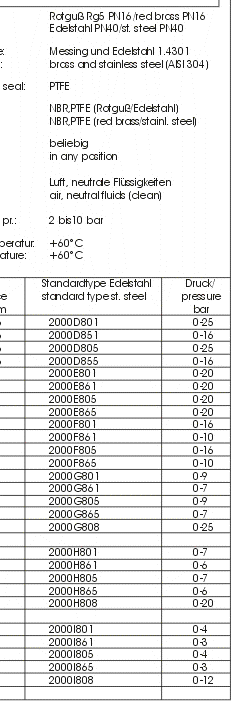

Type 2000

2/2-way externally controlled valve

Standard type

Valve closed by spring force in rest position - NC. When the actuator (cylinder) is pressurized the piston (spindle) is lifted of the seat (orifice) directly.
