3/2-way solenoid valve
In non energised condition P is closed towards A. A is opened
towards R. When energised, P opens towards A and the pressure
relief gate closes R. A pressure differential ( Dp) of 0,5 bar is
necessary for operation.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
||||||||||||||||
|
Type

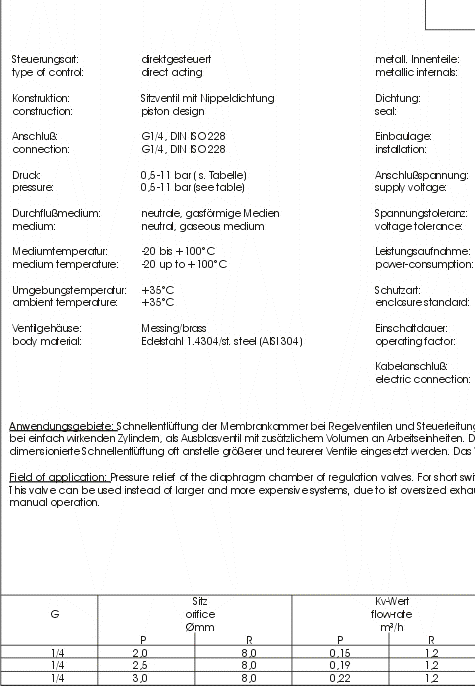

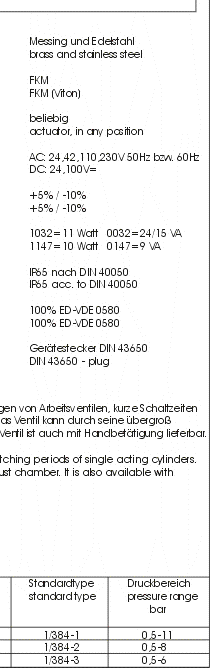

1/384 3/2-way solenoid valve |
|
||||||||||||||
|
||||||||||||||||
|
Standard
type In non energised condition P is closed towards A. A is opened towards R. When energised, P opens towards A and the pressure relief gate closes R. A pressure differential ( Dp) of 0,5 bar is necessary for operation. |
|
|
|||||||||||||
|
|
|
||||||||||||||
| ||||||||||||||||
|
||||||||||||||||
|
||||||||||||||||
