Parts List
 K1.1    valve body
 K2.1     bonnet
*K3.1   valve plate
*K3.2   orifice sealing
*K3.3   fixing disk
 K3.4    stem
*K3.5   locking nut
*K3.6   stem
*K3.7   cap nut
 K3.8    screw joint
 K3.10  thrust ring
 K3.11  piston
 K3.12  flange
 K3.13  cylinder
 K3.14  distance tube
 K3.15  disk
 K3.16  disk
 K3.18  cap nut
*K3.19 v-packing
*K3.20  thrust ring
*K3.21  spring
*K3.23  O-Ring / o-ring
*K3.25  O-Ring / o-ring
*K3.27  O-Ring / o-ring
*K3.28  O-Ring / o-ring
*K3.29  u-cup seal
*K3.30  DU-bushing
*K3.31  stud bolt
 K3.32   locking nut
 K3.33   retaining ring
 K3.34   hexagon nut
 K3.35   spring washer
 K3.38   spring washer
*K3.39  spring
*K3.40  scraper ring
*K3.41  screw
*K3.42  u-cup seal
 K3.43   stem
 K3.44   cylinder screw
 K3.45   screw joint

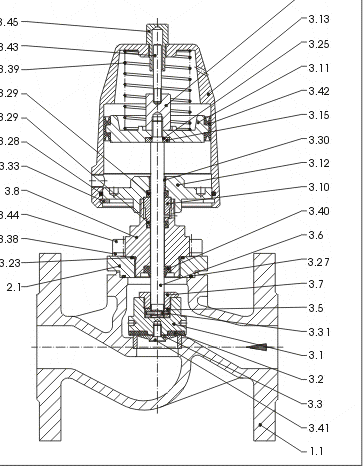

Design with PTFE - seal

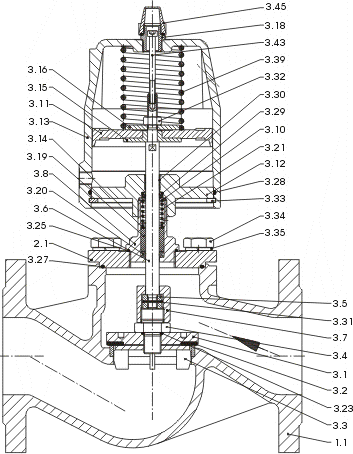

Design with NBR - seal

*= all components of spare parts and service sets are variable in reference to different versions and executions. (These specifications are without obligation).
mechanical position indicator


The following parts  3.43(stem) and 3.45 (screw joint) are standard for the versions 7.05, 7.15, 7.08, 7.58, 7.13 and 7.63
