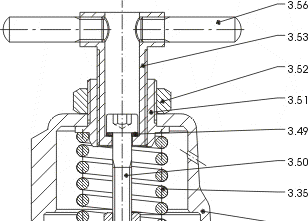

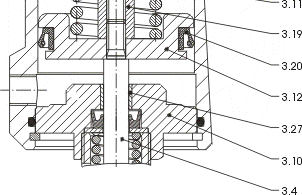

Manual operation - HA

 K3.4    stem
 K3.10  flange
 K3.11  cylinder
 K3.12  piston
 K3.19  locking nut
 K3.20  u-cup seal
 K3.27  DU-bushing
 K3.35  spring
 K3.49  sealing ring
 K3.50  screw
 K3.51  holding device
 K3.52  hexagon nut
 K3.53  control tube
 K3.56  handwheel

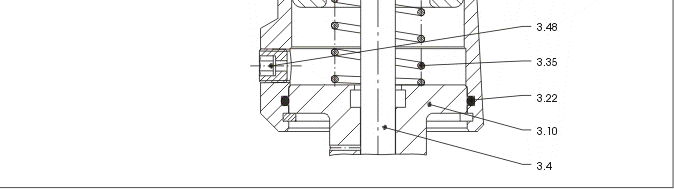

In rest-position open - NO

 K3.4    stem
 K3.10  flange
 K3.11  cylinder
 K3.12  piston
 K3.19  locking nut
 K3.20  u-cup seal
 K3.22  o-ring
 K3.27  DU-bushing
 K3.35  spring
 K3.48  screw joint
 K3.49  screw joint
